Details

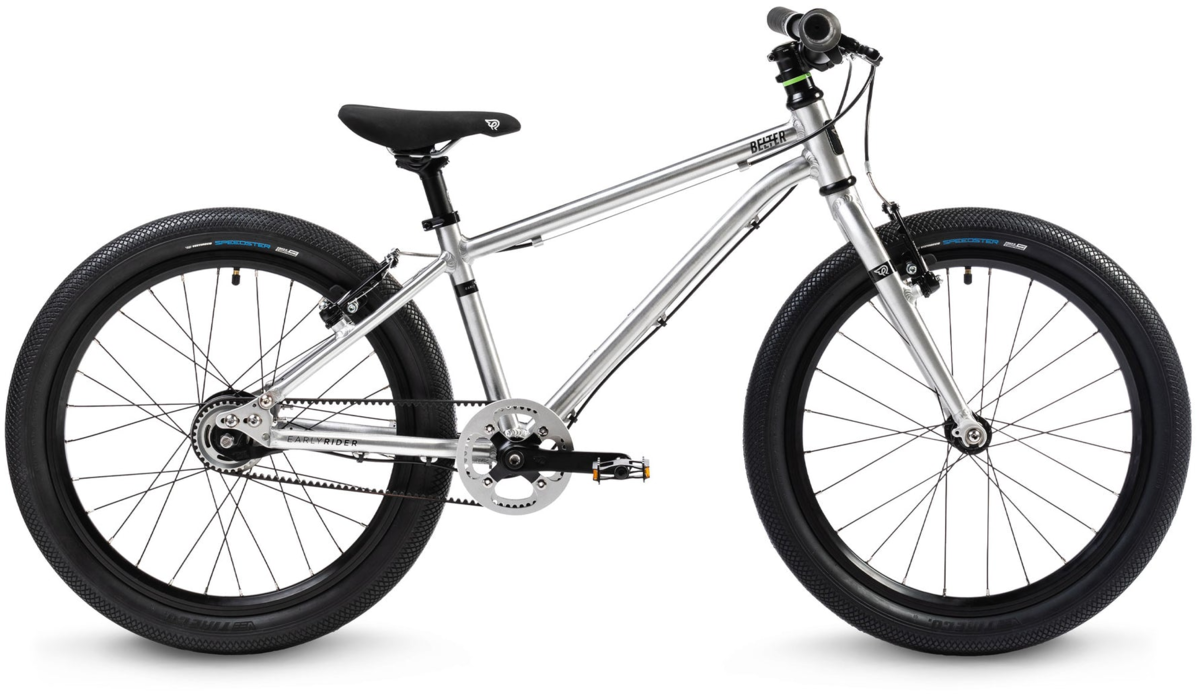

The Belter 20 is a beautifully crafted, lightweight kids’ bike with a 6061-grade aluminium frame and clean belt drive, designed for adventure beyond school. Its progressive geometry and 1.95” tyres enhance stability, traction, and comfort on varied terrain, helping kids age 6-8 safely perfect their pedalling skills.
Featuring a kid-proof 4-speed hub with a carbon belt drive, this award-winning bike ensures smooth, low-maintenance rides. With Ritchey Logic components and an intuitive twist shifter, the Belter 20 provides young riders with ultimate control and durability.
- Super lightweight beautifully crafted aluminium.
Super lightweight aluminium, beautifully crafted to last for years We use 6061-grade aluminium in our bikes. It's a fantastic material. Strong yet light, weatherproof and super robust. It’s also a responsive material transferring more power from the pedals to the wheels. In real terms, this means it’s easier to pedal further for longer. The benefit is a bike that literally goes the distance.
- Geometry to get kids moving
Bike geometry is at the heart of safety, fun, and progress. Even exploring the local neighbourhood demands a capable geometry if we want our kids to safely acquire proper riding skills. Like all of our Belters, the Belter 20 has a more progressive geometry so that kids can tackle the tightest turns and steepest slopes with confidence and capability.
- The Gold Standard for Gearing
The Belter 20 integrates a wide range 4 speed geared hub into our legendary carbon belt drive to produce the ultimate urban explorer. So whether it’s sailing up hills or riding in the rain you can trust these impressively light, and incredibly durable gears to perform. It’s this combination that won the Belter, the only kids bike, ever to win the bike industry's most coveted prize, the Eurobike Gold Award.
- Fantastic finish touches
The Belter 20 is equipped with anatomically designed Ritchey Logic bar and stem, and a twist shifter for intuitive gear changing. Ritchey Logic have been at the forefront of component design for the past 50 years. We’ve collaborated with them for over a decade, producing some of best age specific components to ever grace a kids’ bike.
- Tyres that won't throw them off track
The Belter 20 runs 1.95”, fast rolling tyres as standard, so that developing riding skills is made easier, safer and more enjoyable than the 1.5" tyres typically found on kids bikes. Their extra volume and grip provide added control over the lumps and bumps and give the cushioning that makes riding more enjoyable. 1.95” tyres are also much more stable, especially in tricky conditions. With a bike that is more stable, you can shorten the rear triangle, and that improves handling and manoeuvrability making the bike more capable still.
| Size | One Size |
|---|---|
| Wheelbase | 838mm |
| Head Angle | 69.5° |
| Seat Tube Length | 280mm |
| Chainstay Length | 331.5mm |
| Seat Tube Angle | 73° |
| Standover Height | 515mm |
| Top Tube Length | 448mm |
| Head Tube Length | 92mm |
| Stack | 397.5mm |
| Reach | 326mm |
| Fork Length | 310mm |
Specs
| Frame | HAND BRUSHED AL6061, FORGED DROP OUTS |
|---|---|
| Fork | HAND BRUSHED AL6061, FORGED DROP OUTS |
| Rims | 20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061 |
| Hubs |
Front: CNCD AL6061, HOLLOW 7075 AXLE Rear: STURMEY ARCHER X-RF4, 4SP IGH |
| Axles | AL6061 |
| Tires | MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE |
| Bottom Bracket | ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING |
| Crankset | CNC'D AL6061, 120MM |
| Chainrings | CNC'D AL6061, 46T, AL6061 AXLE |
| Cassette/Freewheel | CNC'D AL7075, 32T |
| Chain | GATES POWERGRIP 976 |
| Brakes | TEKTRO 837AL |
| Brake Levers | TEKTRO SHORT REACH, JL-510TS |
| Handlebars | 560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| Tape/Grips | ER WING 120L, 70R |
| Stem | RITCHEY OS FORGED AL6061, 35MM REACH |
| Headset | 1 1/8" CARTRIDGE BEARING, CONVENTIONAL |
| Seatpost | RITCHEY, AL6061, 25.4MM x 250MM |
| Saddle | ER WINGED |
| Pedals | ER AL6061, CAGE, CARTRIDGE BEARING |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Brushed Aluminum / 20-inch / 20-inch | 05060213320840 | BR20 | 210000023509 |
| Sage Green / 20-inch / 20-inch | 05060213321373 | BR20-SG | |
| Violet Haze / 20-inch / 20-inch | 05060213321502 | BR20-VH | 210000023962 |
